Dado Plane - 1/2 inch

Dado Plane - 1/2 inch

$494.99

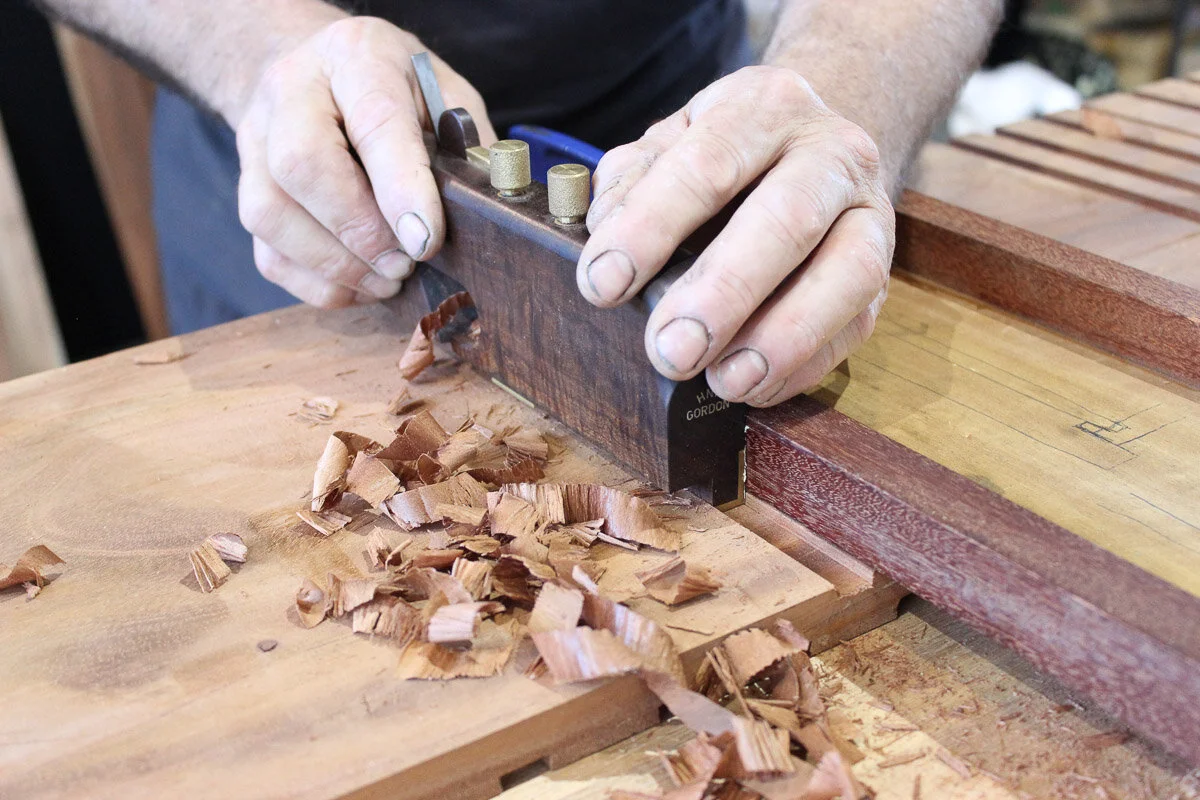

This 1/2" dado plane is used to make a 1/2" dado (groove) across or with the grain. The precision made nicker ensures a very neat and accurate dado as the wood fibers are cleanly severed ahead of the blade when planing across the grain. The plane also has a mechanically adjustable depth stop so you can plane the dado to a precise depth.

  • It is 9” long x 1 1/8” wide x 3” high.

  • Weighs 2 lbs.

  • Blade is 1/2" wide x 3/16” thick and is Tool Steel hardened to RC 62-64.

  • Blade pitch of 60 degrees for superior results on hard, difficult, or reversing grain.

  • 20 degree skewed blade for a smooth finish across the grain or with the grain in hard or difficult wood.

  • Nicker blade is High Speed Steel T1 and is 1/2" wide with 3/8” of usable blade which will last a long time.

  • Nicker blade is mechanically adjustable for easy set up.

  • Made from Gidgee, a very dense and stable Australian wood.

The plane comes with a complete guide for use and sharpening.

Download the Dado Plane Guide here.

Questions? Please contact us.

Quantity:
Add To Cart
