A55 Trying Plane
A55 Trying Plane

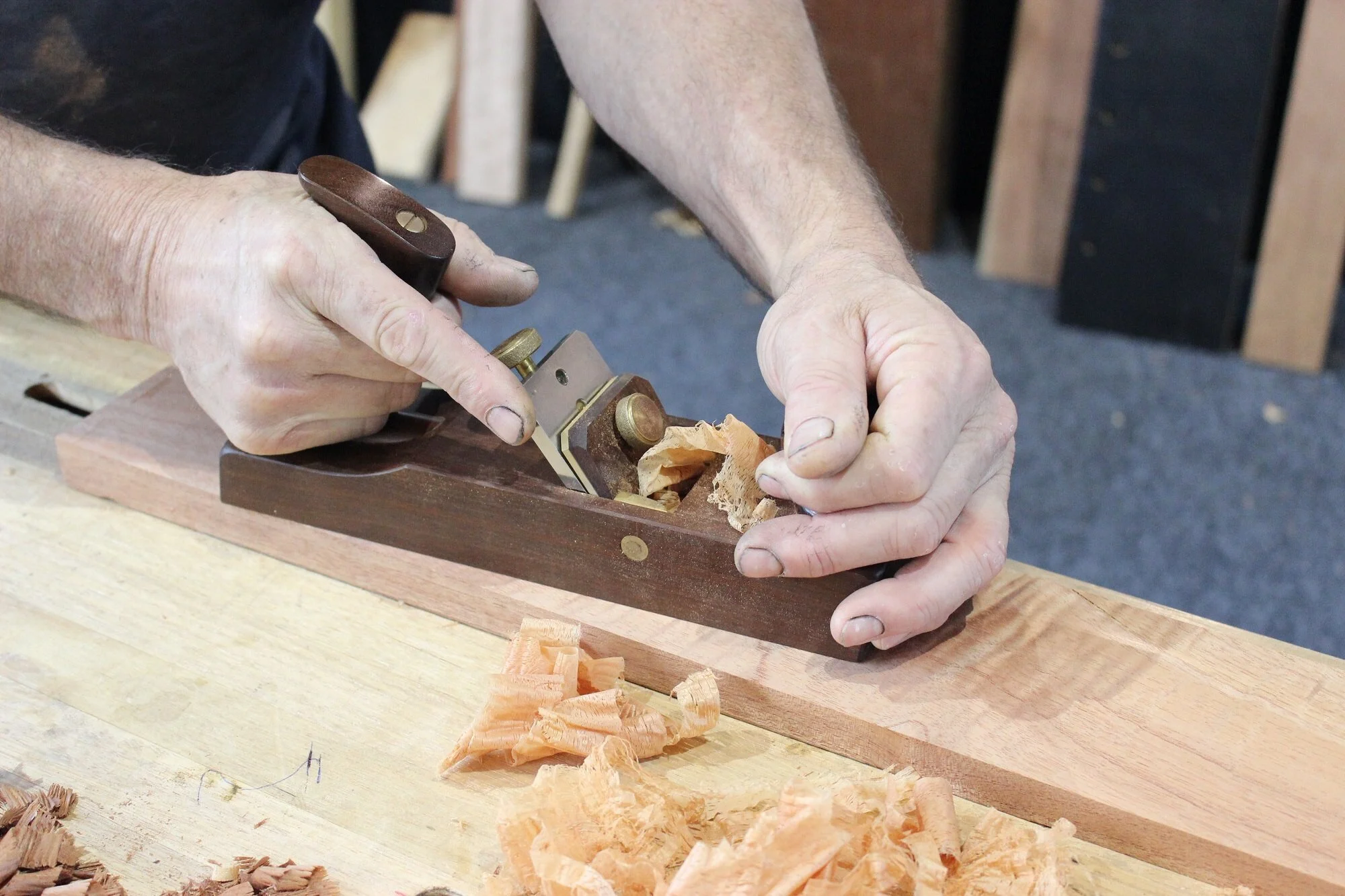

This A55 Trying Plane (alternatively known as a fore or jointer plane) has an adjustable blade set at 55 degrees - which excels on hard, difficult, or reversing grain. Used for smoothing long surfaces and jointing long boards. Works very well when used on a shooting board. A cabinet makers work horse.
It is 18 1/8” long x 2 5/8” wide x 1 5/8” high.
Weighs 4 lbs.
Option of a O1 Tool Steel (O1 TS) blade hardened to RC 62-64 OR a High Speed Steel (HSS) blade hardened to RC 62.
Blade pitch is 55 degrees for excellent results on hard or difficult grain.
Blade is reversible to bevel up, effectively creating a blade pitch of 85 degrees, allowing it to be used as a scraper on difficult and reversing grain. It’s two tools in one!
HSS is ideal if you plan to reverse the plane to bevel up and use it as a scraper, as it will hold up better under heat. However, it will take longer to sharpen.
The blade is 3 7/8” long x 2” wide x 1/4” thick.
For adjustment there is a fine thread screw with lateral movement (10th of a turn gives meaningful change in depth).
The mouth is protected by a brass rub plate.
Knob and tote handle superbly shaped by Ross Burgess.
Made from Gidgee, a very dense and stable Australian wood.
Download the A55 Trying Plane Guide here.Questions? Please contact us.
